5/8 Black Max Brake Kit (.625") (For 6" Diameter Wheel)

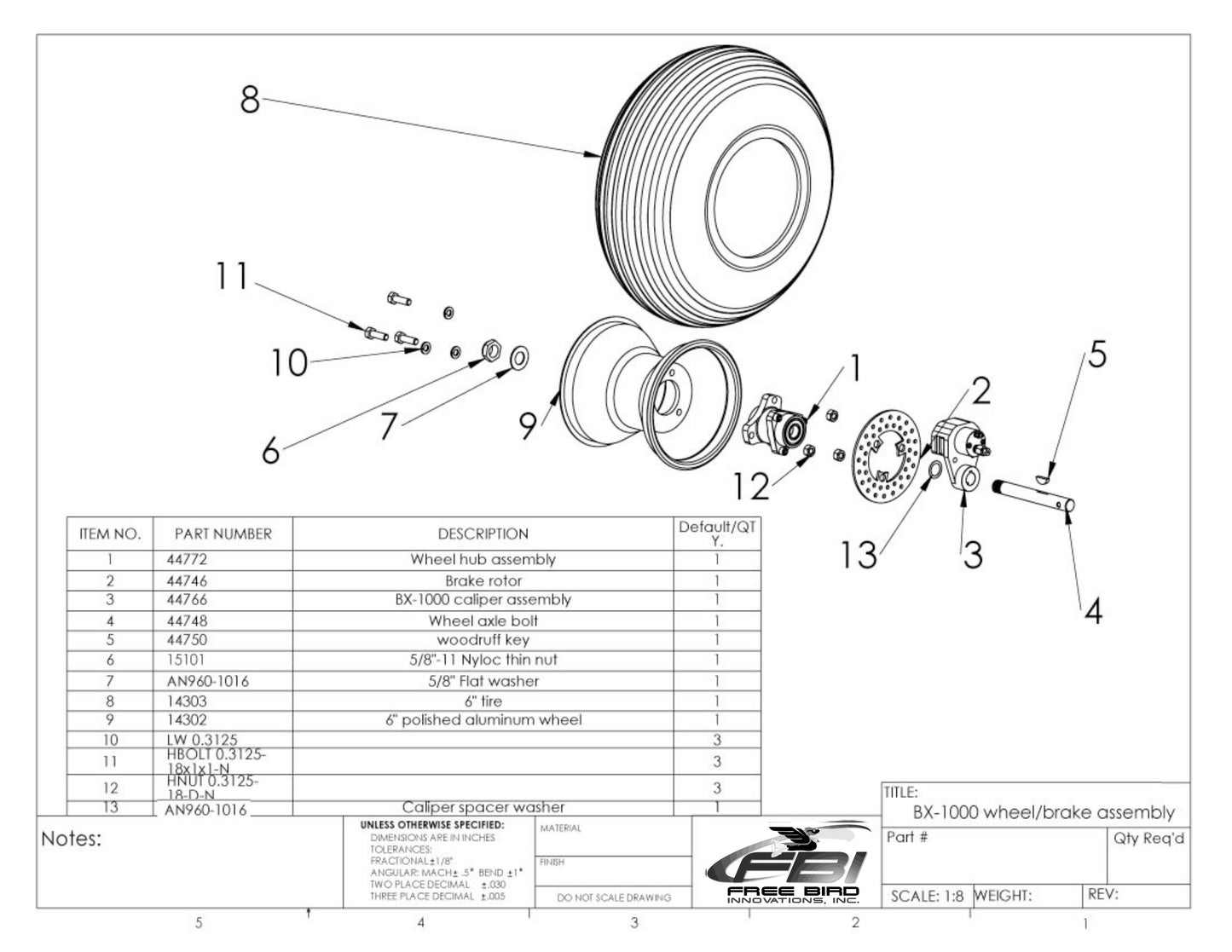

Download Installation Manual

BX1000 and BX1320 is now the same kit that comes 5/8" Axles. We do have the option to order this kit with hydraulic braided hoses. The hoses have an JIC female swivel fitting on each end. If you order the kit with this option the hydraulic fittings will be substituted for you with the JIC fitting instead of the standard compression fittings that are used with the nylon hose.  When ordering for a single lever master cylinder you would have hose 1 be the length from the MC to the Tee Fitting and then Hose 2 & 3 would be the length from the Tee Fitting to each caliper.  The hoses are pre-made and stocked in 1 foot increments.

When ordering for a dual lever master cylinder or a dual lever heel/toe master cylinder you would have hose 1 & 2 be the distance from the MC to the Caliper.

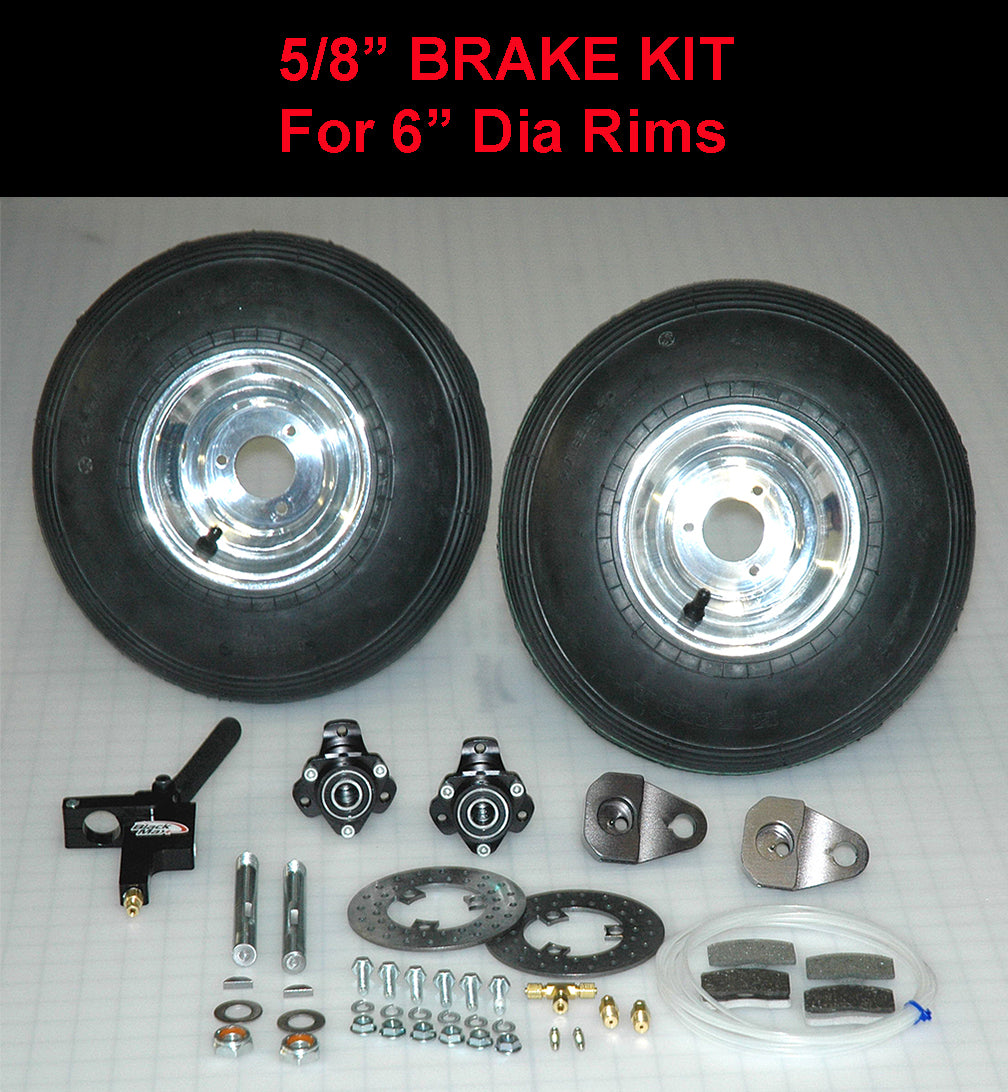

A common kit with 5/8” axles, hardware, fittings, line, 1 single lever MC, 2 Single puck calipers, 2 hubs, 2 Rotors with no wheels or tires is 5.9 lbs

(All Tires Sold Separately)

This standard kit includes both sides
