5/8 Black Max Brake Kit (.625") (For 5" Diameter Wheel)

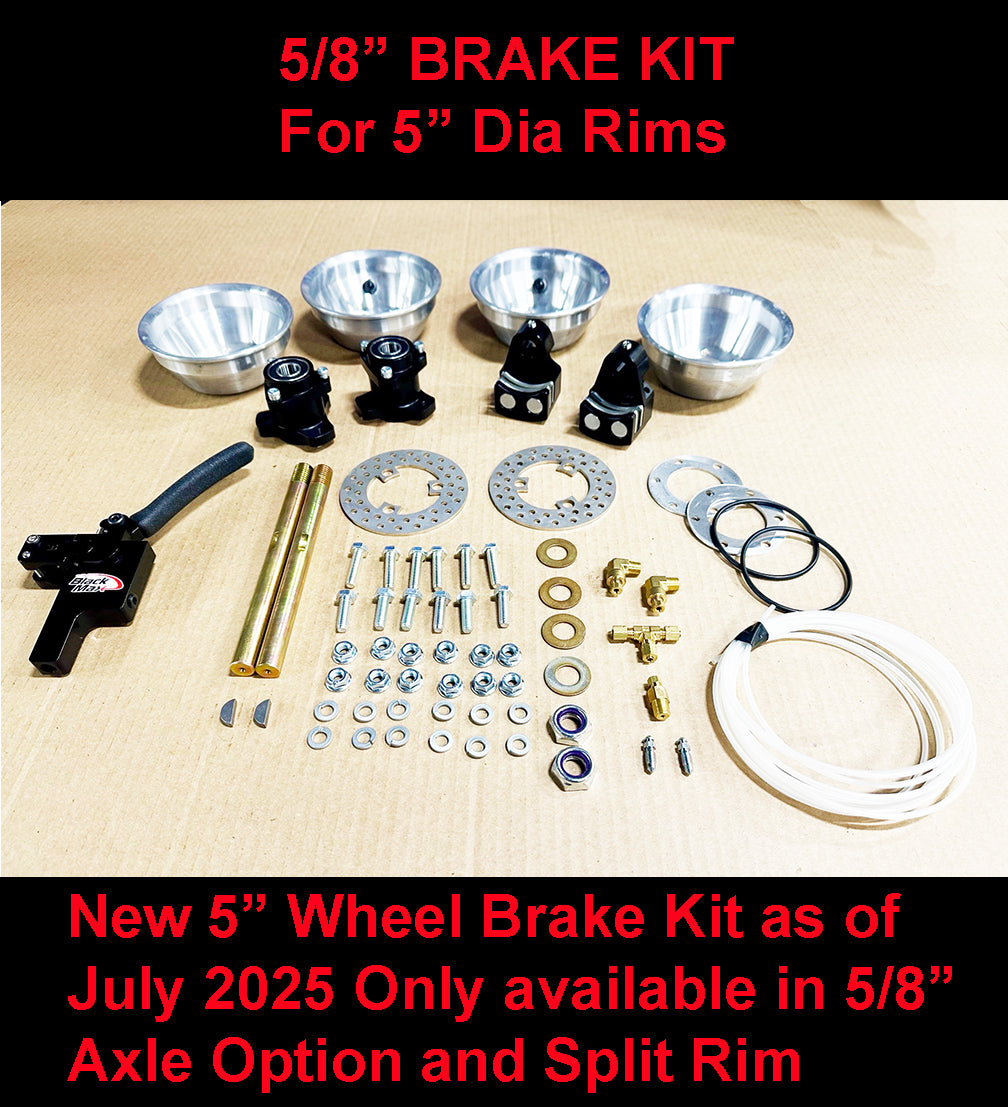

New Release Black Max 5" Diameter Wheel Brake Kit New Release July 2025.  Black Max Brakes now has a brake kit option for a 5" diameter wheel.  This kit has a compact caliper with dual pistons to assure plenty of braking power.  The tire size available for this kit is 11" diameter and 4" wide and is only available with our 5/8" Axle option.  Uses the same hub assembly used with the 5/8" kit for 6" rims.

This kit will also work with our hydraulic braided hose option. The hoses have an JIC female swivel fitting on each end. If you order the kit with this option the hydraulic fittings will be substituted for you with the JIC fitting instead of the standard compression fittings that are used with the nylon hose.  When ordering for a single lever master cylinder you would have hose 1 be the length from the MC to the Tee Fitting and then Hose 2 & 3 would be the length from the Tee Fitting to each caliper.  The hoses are pre-made and stocked in 1 foot increments.

When ordering for a dual lever master cylinder or a dual lever heel/toe master cylinder you would have hose 1 & 2 be the distance from the MC to the Caliper.

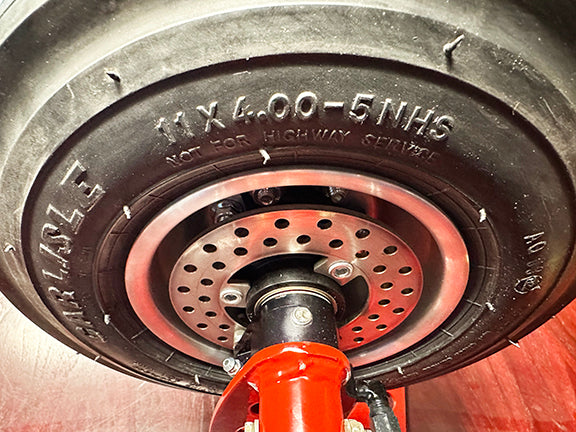

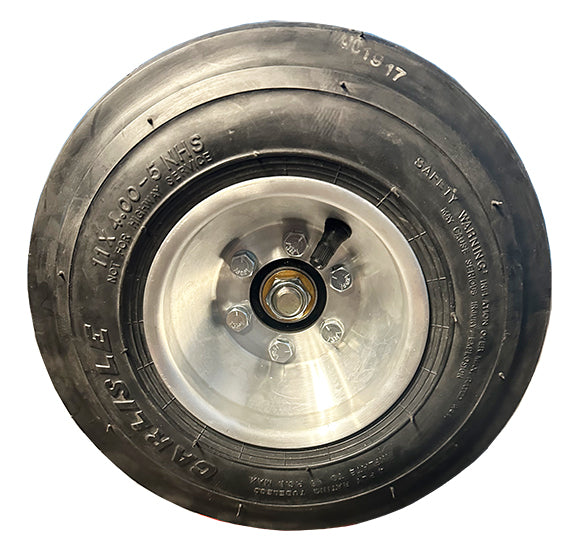

This kit fits the 11-400x5 Tire
